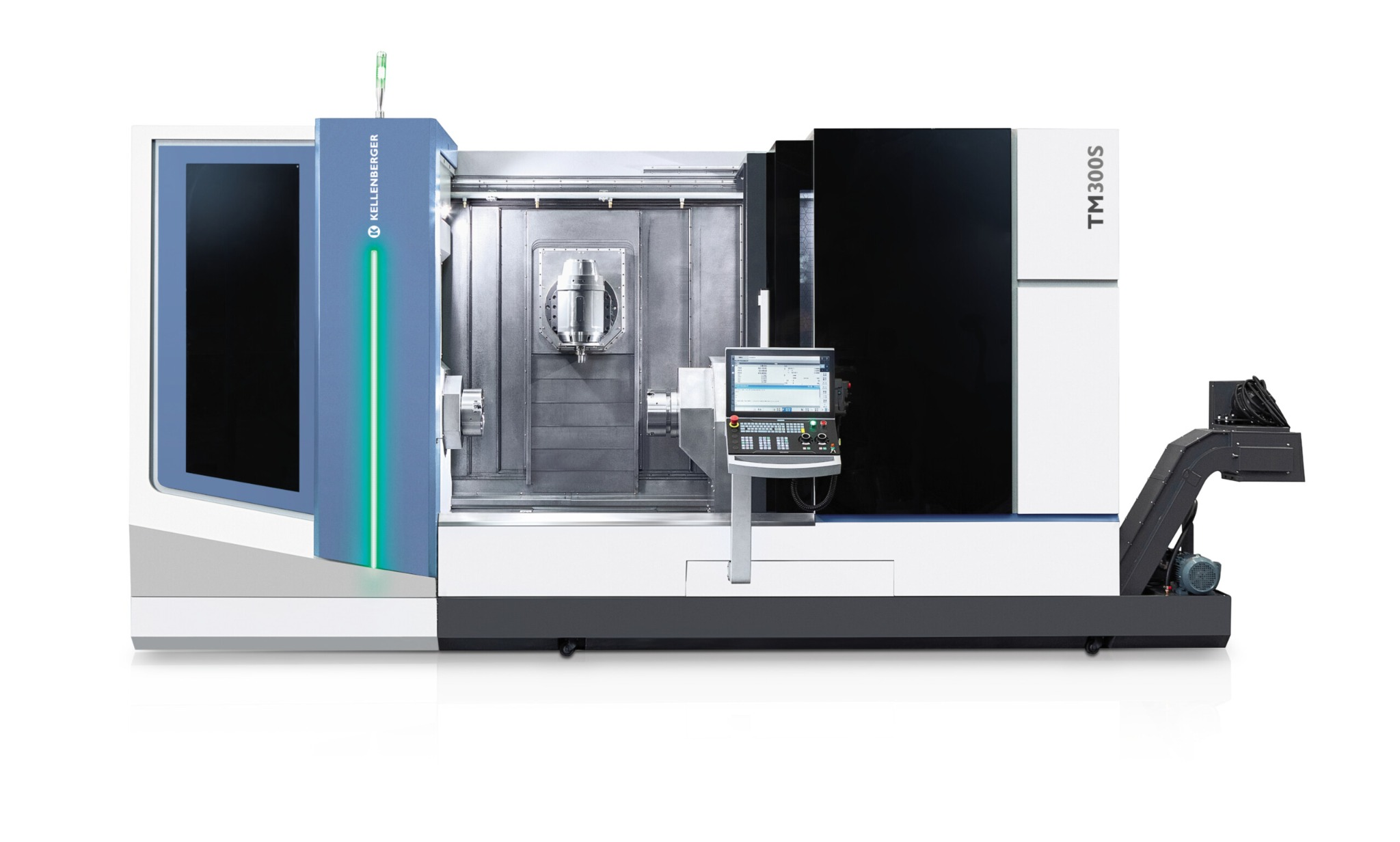

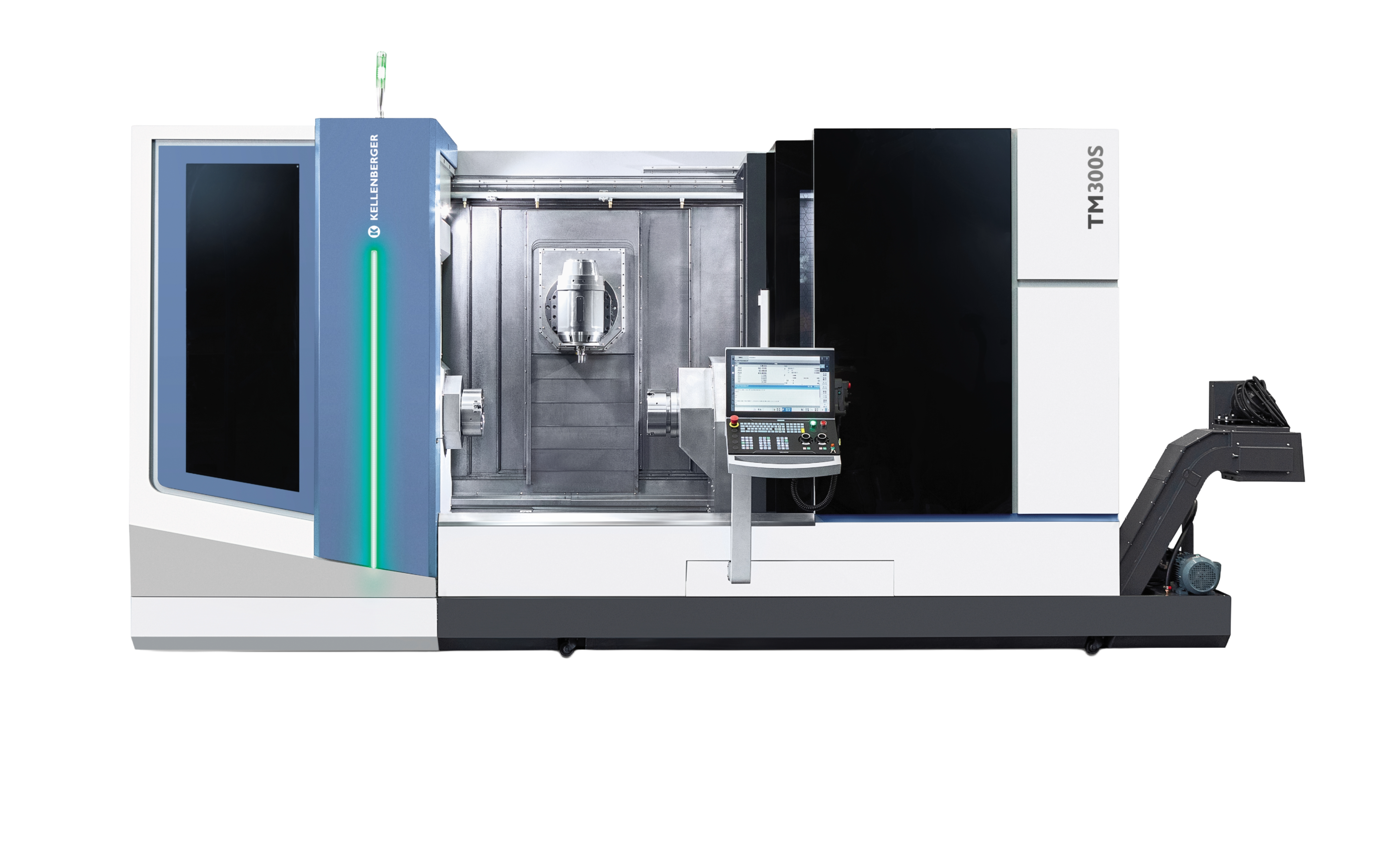

The KELLENBERGER TM300 is a state-of-the-art 5-axis turning-milling center with full closed-loop control. It combines powerful milling and turning capabilities in a single machine, making it ideal for applications in precision engineering, aerospace, medical technology, and general mechanical manufacturing.
KELLENBERGER
TM300
KELLENBERGER TM300
Dauer 1:36
FEATURES AND OPTIONS
Key Highlights
- 5-axis simultaneous machining / 6-sided machining in a single set-up
- Orthogonal Y-axis with 300 mm travel for extended machining range
- B-axis with 240° swivel, direct drive for high precision and fast response
- High-torque main spindle (A2-8) with 3,500 rpm and 600 Nm torque
- Milling spindle HSK T63 with 12,000 rpm and 100 Nm torque
- Sub-spindle (TM300S/ST) with 3500 rpm and 477 Nm torque（TM300S）/ 433 Nm torque (TM300ST)
- 40-position tool magazine with automatic tool changer
- Siemens SINUMERIK One with 22″ touchscreen and optional Digital Twin
- Servo tailstock MT5, integrated cooling, air and lubrication systems
Optional Features
- Digital Twin for simulation and optimization of machining processes
- Collision detection, 3D simulation, graphical programming
- Sub-spindle (TM300S/ST) and lower turret (TM300ST) for maximum productivity
TYPICAL APPLICATIONS
- Precision shafts and bushings
- Complex rotationally symmetrical parts
- Medical implants
- Aerospace components with high surface quality requirements
